一次性澱粉餐具澱粉提取特點

一次性澱粉餐具澱粉提取特點

網址：http://www.shuiniguan.com 手機頁麵二維碼 2022-01-31 16:52:25

1.浸泡罐 浸泡罐是錐形底的圓柱形罐。罐的高徑比為2∶1；罐底錐度不低於45°；每個罐單獨配置輸液泵及加熱器。10萬噸澱粉裝置配300m3罐8個，3萬噸澱粉裝置配100m3罐8個，1萬噸澱粉裝置配40m3罐6個。

1. Soaking tank soaking tank is a cylindrical tank with conical bottom. The height diameter ratio of the tank is 2 ∶ 1; The taper of tank bottom shall not be less than 45 °; Each tank is separately equipped with infusion pump and heater. The 100000 ton starch plant is equipped with 8 300m3 tanks, the 30000 ton starch plant is equipped with 8 100m3 tanks, and the 10000 ton starch plant is equipped with 6 40m3 tanks.
2.玉米破碎機 一般采用凸齒磨。
2. Corn crusher generally adopts convex tooth mill.
3.胚芽旋流器 過去老廠多用胚芽分離桶或漂浮槽，而目前都采用旋流器分離胚芽。
3. Germ cyclone used to use germ separation barrel or floating tank in old factories, but now cyclone is used to separate germ.
4.胚芽洗滌曲篩（曲篩又名弧形篩） 萬噸級澱粉廠一般用玉米脫水曲篩1台，胚芽洗滌曲篩3台。
4. Germ washing curved screen (curved screen, also known as arc screen) one corn dehydration curved screen and three germ washing curved screens are generally used in 10000 ton starch plants.

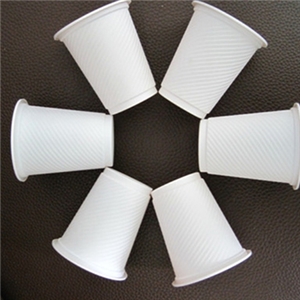

一次性玉米澱粉餐具
5.衝擊磨 細磨一般用衝擊磨（針磨），比砂盤磨為好。
5. Impact grinding fine grinding generally uses impact grinding (needle grinding), which is better than sand disc grinding.
6.纖維分離洗滌用壓力曲篩 老式工藝中還有采用錐形離心篩、振動平篩的，現在基本都采用壓力曲篩。
6. Pressure curved screen for fiber separation and washing. In the old process, conical centrifugal screen and vibrating flat screen are also used. Now, pressure curved screen is basically used.
7.澱粉與蛋白分離 老式工藝用沉澱法的流槽工藝，現已淘汰。如今一般都采用碟式噴嘴型分離機，簡稱澱粉分離機。
7. The old-fashioned process of separating starch and protein, the chute process of precipitation method, has been eliminated. Nowadays, disc nozzle separator is generally used, which is referred to as starch separator for short.
8.澱粉洗滌的旋流分離器 它是由一定數量的φ10mm旋流管組合而成的，因此也稱多管旋流器。生產中，通常采用9—12級，多管旋流器分C型、TM型和RC型，國產有72型和50型的，均屬於C型係列。
8. The cyclone separator for starch washing consists of a certain number of φ It is composed of 10mm cyclone tubes, so it is also called multi tube cyclone. In production, 9-12 stages are usually used. Multi tube hydrocyclones are divided into C-type, TM type and RC type. Domestic models 72 and 50 belong to C-type series.
9.麩質濃縮分離機 一般都用碟片式噴嘴型分離機。
9. Generally, disc nozzle separator is used for gluten concentration separator.
10.麩質回收 小型廠可用板框壓濾機，大型廠一般都用轉鼓式真空吸濾機，也有用沉降離心機的。
10. Plate and frame filter presses can be used in small-scale gluten recovery plants, while rotary drum vacuum suction filters and sedimentation centrifuges are generally used in large-scale plants.
11.澱粉幹燥 一般都用氣流幹燥。
11. Starch drying is generally air drying.
12.澱粉脫水 一般用臥式刮刀離心機。
12. Horizontal scraper centrifuge is generally used for starch dehydration.
13.管束式幹燥機 濕纖維、胚芽餅和濃縮玉米漿混合後一般采用管束式幹燥機幹燥。
13. After mixing wet fiber, germ cake and concentrated corn slurry, the tube bundle dryer is generally used for drying.
